How to Install a Bicycle Speedometer?

Installing a bicycle speedometer is a great way to keep track of your cycling progress, measure your speed, distance, time, and monitor your fitness goals. Whether you are an avid cyclist or a beginner, installing a speedometer on your bike can significantly enhance your riding experience. In this guide, we will walk you through the step-by-step process of installing a bicycle speedometer.

Also Read:

Best Cycling Computer for Navigation

Things you will need

Before we dive into the installation process, let’s gather the necessary tools and equipment:

1. Bicycle speedometer kit (typically includes a sensor, magnet, display, and mounting accessories)
2. Zip ties or cable ties
3. Scissors or wire cutters
4. Tape measure or ruler
5. A small wrench or screwdriver (depending on the speedometer model)

To begin installing your bicycle speedometer, make sure you have all the required tools and equipment mentioned above. Having everything prepared will make the installation process smoother and more efficient.

Step 1: Choose a suitable location for the speedometer

The first step is to decide where you want to mount the speedometer on your bike. It is essential to choose a location that is easily visible and within your line of sight while riding. This will allow you to check your cycling metrics without taking your eyes off the road. Common places to mount the speedometer include the handlebars or the stem. Ensure that the chosen location allows for easy access to the buttons and display.

Step 2: Mount the speedometer sensor

The speedometer sensor is responsible for detecting the rotation of your bike’s wheel and transmitting the data to the display unit. Follow these steps to mount the sensor:

1. Locate a suitable spot on the front fork near the wheel hub. This area should be clean, free from dirt or debris that may interfere with the sensor’s functionality.
2. Attach the sensor to the fork using the provided zip ties or mounting kit. Ensure that the sensor aligns with the magnet position on the wheel spoke. The sensor should be close enough to pick up the wheel’s magnet passing by but not so close that it interferes with the wheel’s movement.

Mounting the sensor securely is crucial to ensure accurate readings of your cycling metrics. Take your time to position it correctly and fasten it tightly to the fork.

Step 3: Install the magnet

The magnet is typically attached to one of the spokes on your bike’s wheel and works in conjunction with the speedometer sensor. Here’s how to install the magnet:

1. Choose a spoke that aligns with the sensor when the wheel is spinning. This alignment is crucial for accurate measurement of your cycling metrics.
2. Clean the spoke thoroughly, removing any dirt or grease that could affect the magnet’s adhesion.
3. Attach the magnet to the spoke using the provided adhesive or by tightening it with a screw, depending on the magnet type.
4. Adjust the magnet’s position to ensure it passes closely by the sensor during each wheel rotation. This proximity is necessary for the sensor to detect the magnet and transmit the data to the display unit accurately.

Proper installation of the magnet is essential to ensure reliable and consistent readings on your speedometer. Take your time to position it correctly and ensure it is securely attached to the spoke.

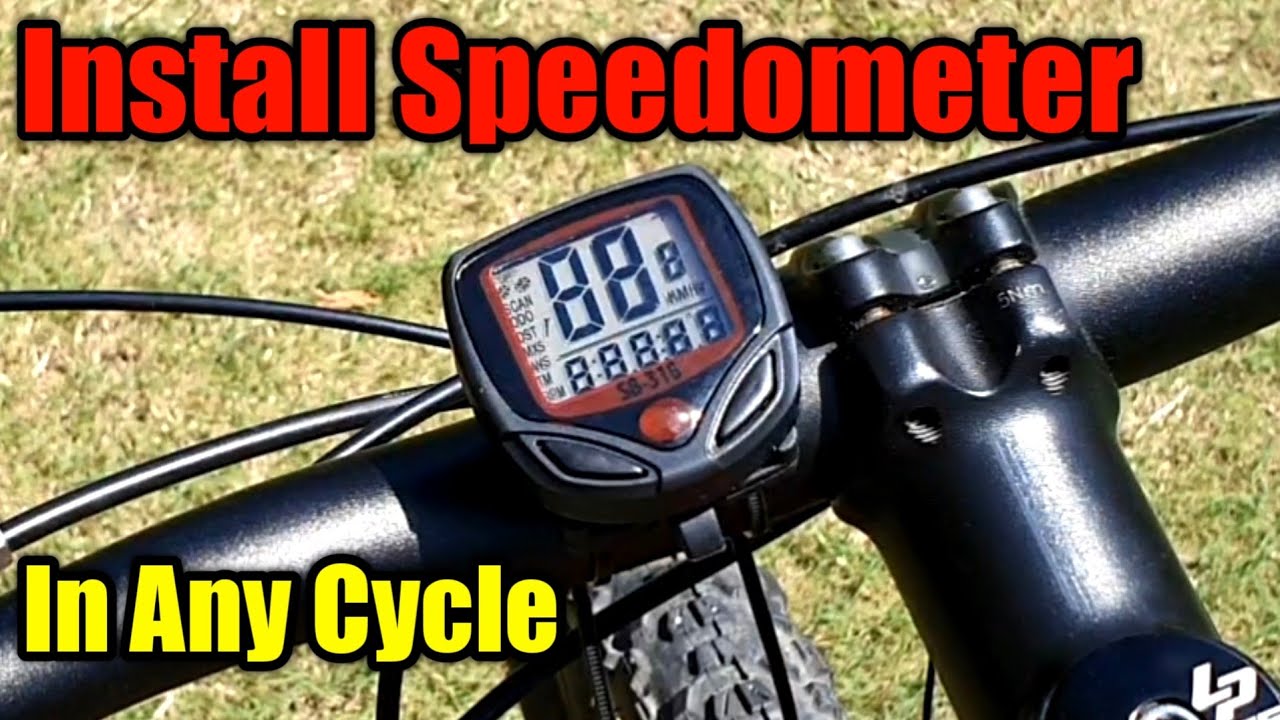

Step 4: Mount the speedometer display

Now that the sensor and magnet are in place, it’s time to mount the speedometer display. Follow these instructions:

1. Attach the display unit to the handlebars or stem using the provided mounting accessories. Ensure it is securely fastened and positioned for optimal visibility. The display should be positioned in a way that allows you to easily read your cycling metrics while riding.
2. If necessary, adjust the display unit’s angle or orientation to align with your line of sight. This adjustment will enhance your ability to view the data without diverting your attention from the road.

The display unit is where you will be able to monitor your cycling metrics, so make sure it is mounted securely and positioned for clear visibility.

Step 5: Connect the sensor to the display unit

The final step involves connecting the sensor to the speedometer display. This connection enables the transmission of data and allows you to view your cycling metrics. Here’s how to do it:

1. Locate the cable that connects the sensor and the display unit. This cable should be long enough to reach from the sensor to the display unit without stretching or interfering with the bike’s movement.
2. Connect one end of the cable to the sensor and the other end to the appropriate port on the display unit. The ports are usually labeled and color-coded for easy identification.

Double-check the connections to ensure they are secure and properly aligned. This will prevent any data transmission issues and ensure accurate readings on your speedometer display.

Step 6: Test the speedometer

Once everything is securely installed, it’s time to test the speedometer. Follow these steps to ensure it is working correctly:

1. Turn on the display unit and check for any error messages. If there are any errors, refer to the manufacturer’s instructions to troubleshoot the issue.
2. Spin the bike’s wheel and verify that the speedometer accurately displays the speed, distance, or any other metrics. Compare the readings with your own calculations to ensure accuracy.
3. Press the buttons on the display unit to navigate through the different functions and settings. Familiarize yourself with the features and options available, as this will allow you to make the most of your speedometer.

Congratulations! You have successfully installed your bicycle speedometer. Now you can enjoy tracking your progress, improving your performance, and reaching your cycling goals with ease.

Remember, each speedometer model may have slight variations in the installation process, so always refer to the manufacturer’s instructions for specific details. Enjoy your rides and happy cycling!

FAQ

1. Where should I mount the speedometer on my bike?

It is recommended to mount the speedometer on the handlebars or stem of your bike. Choose a location that is easily visible and within your line of sight while riding.

2. How do I mount the speedometer sensor?

To mount the speedometer sensor, locate a suitable spot on the front fork near the wheel hub. Attach the sensor to the fork using zip ties or the provided mounting kit. Make sure the sensor aligns with the magnet position on the wheel spoke.

3. How do I install the magnet for the speedometer?

To install the magnet, choose a spoke that aligns with the sensor when the wheel is spinning. Clean the spoke thoroughly and attach the magnet using the provided adhesive or by tightening it with a screw. Adjust the magnet’s position to ensure it passes closely by the sensor during each wheel rotation.

4. How do I connect the sensor to the display unit?

To connect the sensor to the display unit, locate the cable that connects the two. Connect one end of the cable to the sensor and the other end to the appropriate port on the display unit. Double-check the connections to ensure they are secure and properly aligned.
